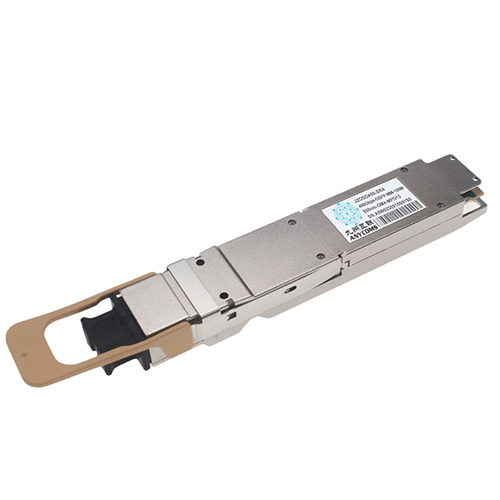

400G OSFP SR4

General Description

The 400G OSFP SR4 is an four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short-range data communication and interconnect application. It integrates four data lanes in each direction with 4x53.125GBd. The length of OSFP SR4 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

Features

OSFP Serial Optical Interface

l 4x100G PAM4 retimed 400GAUI-4 electrical interface

l Active Optical cable

l 4 channel VCSEL arrays and 4 channels PIN photo detector arrays

l Maximum link length of 60m on OM3 or 100m on OM4

OSFP MSA Compliant

l Hot Pluggable OSFP form factor

l Compliant to OSFP Module Specification Rev 5.0

l Compliant with CMIS 5.2

Support Protocol

l Compliant with IEEE 802.3db

l Compliant to IEEE 802.3ck

Low Power Consumption

l Less than 8W in temperature range of 0 to 70℃

Applications

l 400GBASE-SR4 400G Ethernet

l Data center
