  • 100Gb/s QSFP28 LR4 10KM Optical Transceiver Module

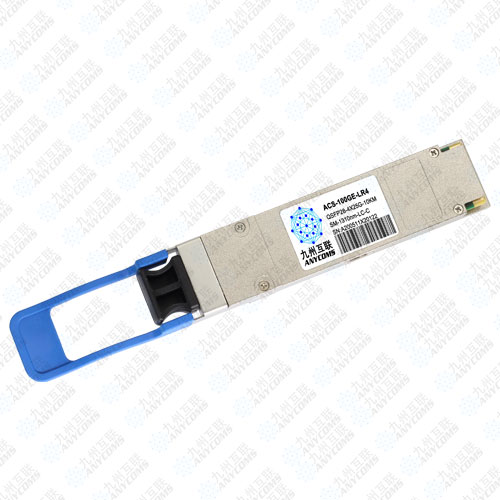

100Gb/s QSFP28 LR4 10KM Optical Transceiver Module

100Gb/s QSFP28 LR4 10KM Optical Transceiver Module

  • Product Model: ACS-100GE-LR4
  • Data Rate: 100G
  • Wavelength: 1310nm
  • Distance: 10KM
  • Product description: ACS-100GE-LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drive
  • INQUIRY   EMAIL

Features

l Compliant with 100GBASE-LR4

l Support line rates from 103.125 Gb/s to 111.81 Gb/s

l Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF

l CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface

l Duplex LC optical receptacle

l Support Digital Diagnostic Monitoring interface

l No external reference clock

l RoHS-6 compliant and lead-free

l Compliant with QSFP28 MSA with LC connector

l Single +3.3V power supply

l Maximum power consumption 3.5W

l All-metal housing for superior EMI performance

l Case operating temperature

Commercial: 0 ~ +70oC

Applications

l Data Center

l Fiber channel Local Area Network (LAN)

l Ethernet switches and router applications

l Other Optical Links

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Lane wavelengthrange

L0

1294.53

1295.56

1296.59

nm

L1

1299.02

1300.05

1301.09

nm

L2

1303.54

1304.58

1305.63

nm

L3

1308.09

1309.14

1310.09

nm

Signaling rate, each lane

25.78125

GBd

Side-mode suppression ratio

SMSR

30

Total launch power

10.5

dBm

Average launch power, each lane

Pavg

-4.3

4.5

dBm

Extinction Ratio

ER

4

dB

Transmitter and Dispersion Penalty, each lane

TDP

2.2

dB

OMA minus TDP, each lane

OMA-TDP

-2.3

dBm

Average launch power of OFF transmitter, each lane

-30

dBm

Transmitter reflectance

-12

dB

Transmitter eye mask {X1, X2,X3, Y1, Y2, Y3}

{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

Receiver

Signaling rate, each lane

25.78125

GBd

Receiver Sensitivity per lane

Rsen

-10.6

dBm

1

Input Saturation Power (overload)

Psat

4.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-12

Receiver reflectance

Rr

-26

LOS Hysteresis

0.5

4

dB
