100G/400G Transceivers

  • 100Gb/s QSFP28 850nm 100M Optical Transceiver Module

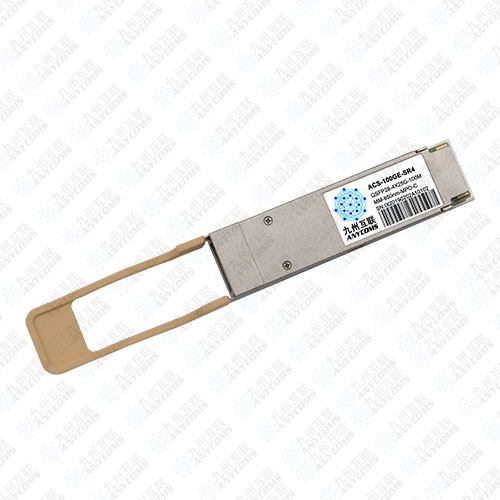

100Gb/s QSFP28 850nm 100M Optical Transceiver Module

100Gb/s QSFP28 850nm 100M Optical Transceiver Module

  • Product Model: ACS-100GE-SR4
  • Data Rate: 100G
  • Wavelength: 850nm
  • Distance: 100m
  • Product description: 100GE-SR4 optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors,
  • INQUIRY   EMAIL

Features

l Up to 27.952 Gbps Data rate per channel

l Maximum link length of 150m links on OM4 multimode fiber

l High Reliability 850nm VCSEL technology

l Electrically hot-pluggable

l MTP/MPO optical connector

l Digital diagnostic SFF-8636 compliant

l RoHS-6 compliant and lead-free

l Single +3.3V power supply

l Maximum power consumption 2.0W

l All-metal housing for superior EMI performance

l Case operating temperature

Commercial: 0 ~ +70oC

Applications

l Data Center

l Fiber channel, Local Area Network (LAN)

l Ethernet switches and router applications

l Other Optical Links

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

840

850

860

nm

Optical Spectral Width

λ

0.6

nm

Average Launch Power each lane

PAVG

-8.4

2.4

dBm

Optical Extinction Ratio

ER

2

dB

Transmitter and Dispersion Penalty

TDP

4.3

dB

Transmitter OFF Output Power

Poff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae

Receiver

Center Wavelength

λC

840

860

nm

Rx Sensitivity per lane

Sen.

-10.3

dBm

1

Input Saturation Power (overload)

Psat

2.4

dBm

LOS Assert

LOSA

-26

dBm

LOS De-assert

LOSD

-12

dBm

LOS Hysteresis

LOSH

0.5

dB
