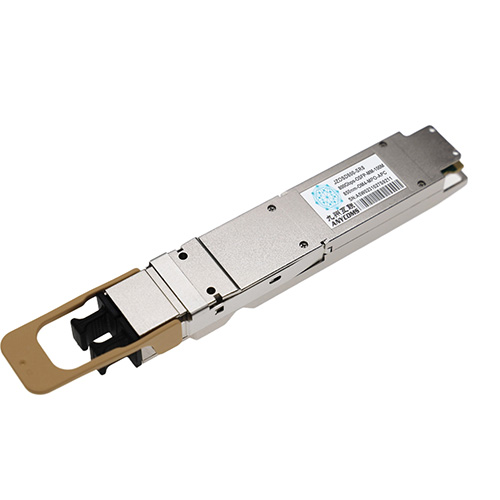

800G OSFP SR8

General Description

OSFP 800G SR8 an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver is a high performance module for short-range data communication and interconnect application. It integrates eight data lanes in each direction with 8x53.125GBd. The length of OSFPSR8is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

Features

OSFP Serial Optical Interface

l 8x100G PAM4 retimed 800GAUI-8 electrical interface

l Dual MPO-12 APC connector and MPO16 APC connector are provided

l 8 channel VCSEL arrays and 8 channels PIN photo detector arrays

l Maximum link length of 60m on OM3 or 100m on OM4

OSFP MSA Compliant

l Hot Pluggable OSFP form factor

l Compliant to OSFP Module Specification Rev 5.0

l Compliant with CMIS 5.2

Support Protocol

l Compliant with IEEE 802.3db

l Compliant to IEEE 802.3ck

Low Power Consumption

l Less than 14W in temperature range of 0 to 70℃

Applications

l 800GBASE-SR8 800G Ethernet

l Data center
