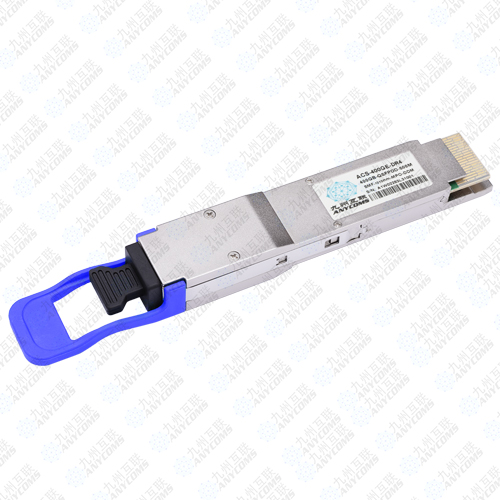

400G QSFP-DD DR4 Optical Transceiver

Part Number: ACS-400GB-DR4
Max Data Rate: 400Gbps
Wavelength: 1310nm
Max Cable Distance: 500M
Product description: 400G QSFP-DD DR4 Optical Transceiver (SMF, 1310nm, 500m, MPO, DOM)
INQUIRY EMAIL

Description

This product is a 400Gb/s QSFP-DD optical module designed for 0.5Km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.

On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP-DD DR4 module receptacle. Host FEC is required to support up to 0.5Km fiber transmission.

Transmitter Optical Specifications

Transmitter Parameter	Min	Typical	Max	Unit
Lane Wavelength Range	1304.5	1310	1317.5	nm
Modulation Format	PAM4
AverageOptical power, Per lane	-2.9		4	dBm
Average launch power, Per lane@TX OFF State			-15	dBm
Outer Optical Modulation Amplitude (OMAouter), each lane	-0.8		4.2	dBm
Launch power in OMAouter minus TDECQ each lane	-2.2			dB
Transmitter and dispersion eye closure for PAM4 (TDECQ), each lane			3.4	dB
Extinction ratio, each lane	3.5			dB
Relative Intensity Noise(OMA)			-136	dB/Hz
Side-Mode Suppressio Ration(SMAR)	30			dB
Optical return loss tolerance			21.4	dB
Transmitter Reflectance			-26	dB

Receiver Optical Specifications

Receiver Parameter	Min	Typical	Max	Unit
Center Wavelength Range	1304.5	1310	1317.5	nm
Modulation Format	PAM4
Damage Threshold	5.0			dBm
Average receive power, each lane	-5.9		4.0	dBm
Receive power, each lane (OMA)			4.2	dBm
Receiver reflectance			-26	dB
Receiver sensitivity (OMAouter), each lane			-4.4	dBm
Stressed receiver sensitivity (OMAouter), each lane			-1.9	dBm
Stressed Conditions For Stress Receiver Sensiticity
Stressed eye closure for PAM4 (SECQ), lane under test		3.4		dB
OMAouter of each Aggressor Lane		4.2		dB
