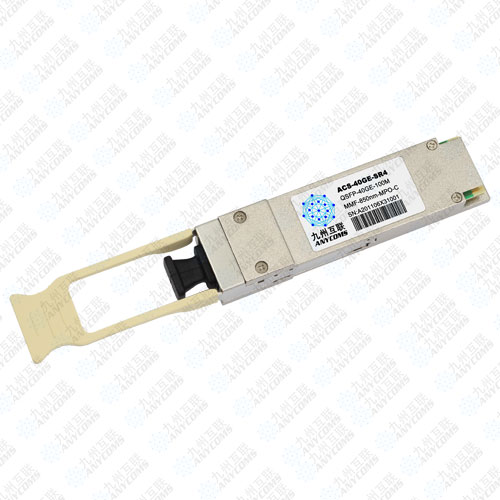

40Gb/s QSFP+ SR4 100M Optical Transceiver Module

ACS-40GE-SR4





Features

l 4 independent full-duplex channels

l Up to 11.2Gb/s data rate per channel

l High Reliability 850nm VCSEL technology

l MTP/MPO optical connector

l QSFP+ MSA compliant

l Electrically hot-pluggable

l Up to 100m  transmission on OM3 multi-mode fiber or 150m links on OM4 multimode fiber

l RoHS compliant and lead-free

l Digital diagnostic capabilities

l Single +3.3V power supply

l Maximum power consumption 1.5W

l All-metal housing for superior EMI performance

l Case operating temperature

l Case operating temperature

Commercial: 0 ~ +70oC

Extended: -10 ~ +80oC

Industrial: -40 ~ +85oC

Applications

l 40GBASE-SR/SW & 10G Ethernet

l Data Center

l Back to Back

l Other Optical Links

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

840

850

860

nm

Optical Spectral Width

λ

0.65

nm

Average Launch Power Per lane

PAVG

-7.6

0.5

dBm

1

Optical Extinction Ratio

ER

3.0

dB

Transmitter OFF Output Power

Poff

-30

dBm

Transmitter and Dispersion Penalty each lane

TDP

3.5

dB

Optical Return Loss Tolerance

ORLT

12

dB

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

840

850

860

nm

Receiver Sensitivity in average power

Sen.

-9.5

dBm

2

Input Saturation Power (overload)

Psat

2.4

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-12

dBm

Receiver Reflectance

Rr

-12

dB

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

2. Measured with Light source 850nm, ER=3.0dB; BER =<10^-12 @10.325Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (oC)

ACS-40GE-SR4

40

850

100m MMF

0~70 commercial
