10Gb/s SFP+ 850nm 300M Optical Transceiver Module

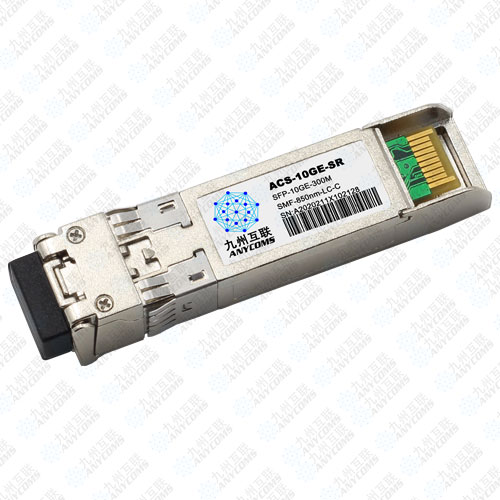

ACS-10GE-SR





Features

l Up to 11.3Gb/s data links

l 850nm VCSEL laser and PIN receiver

l Up to 300m on 50/125µm MMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Applications

l 10GBASE-SR/SW & 10G Ethernet

l SDH STM64

l Other Optical Links

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

840

850

860

nm

1

Optical Spectral Width

λ

0.85

nm

Average Optical Power

PAVG

-6

-1

dBm

2

Optical Extinction Ratio

ER

3.0

dB

Transmitter OFF Output Power

Poff

-30

dBm

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

770

850

860

nm

Receiver Sensitivity (Average Power)

Sen.

-10

dBm

3

Input Saturation Power (overload)

Psat

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-14

dBm

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

2. Launched power (avg.) is power coupled into a single mode fiber with master connectorBefore of Life.

3. Measured with Light source 850nm, ER=3.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (oC)

ACS-10GE-SR

10.3125

850

300m MMF

0~70 commercial

ACS-10GE-SRI

10.3125

850

300m MMF

-40~85 Industrial
