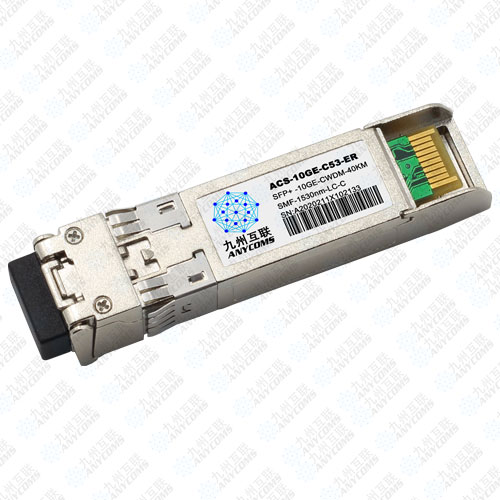

  • 10Gb/s SFP+ CWDM 40KM Optical Transceiver Module
10Gb/s SFP+ CWDM 40KM Optical Transceiver Module

10Gb/s SFP+ CWDM 40KM Optical Transceiver Module

  • Product description: ACS-10GE-Cxxxx-ER transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optic
  • INQUIRY   EMAIL

Features

l Up to 11.3Gb/s data links

l CWDM DFB transmitter and PIN receiver

l Up to 40km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 1.5W

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70 oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λ

λ -6.5

λ +6.5

nm

1

Optical Spectral Width

λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

0

5

dBm

2

Optical Extinction Ratio

ER

3.5

dB

Transmitter and Dispersion Penalty

TDP

3

dB

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λ

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-15

dBm

3

Input Saturation Power (overload)

Psat

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-17

dBm

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. λ refer to wavelength selection, 1270~1370nm please the “product selection.

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1270~1370nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength List:

Wavelength

Clasp Color Code

Wavelength

Clasp Color Code

1270

Gray

1330

Purple

1290

Gray

1350

Blue

1310

Gray

1370

Green

Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

ACS-10GB-CWDM-ER

10.3125

Refer to wavelength selection

40KM SMF

0~70 commercial
