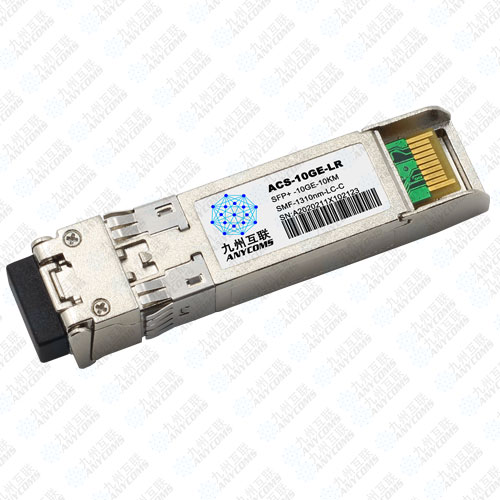

10Gb/s SFP+ 1310nm 10KM Optical Transceiver Module

Product description: ACS-10GE-LR transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of 1310 DFB Laser, PIN and Preamplifier in a high-integrated optical sub
INQUIRY EMAIL

Features

l Up to 11.3Gb/s data links

l 1310nm DFB transmitter and PIN receiver

l Up to 10km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 1.2W

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Transmitter
Center Wavelength	λ_C	1260	1310	1355	nm	1
Optical Spectral Width	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power	P_AVG	-6		-0.5	dBm	2
Optical Extinction Ratio	ER	3.5			dB
Transmitter OFF Output Power	Poff			-30	dBm
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Receiver
Center Wavelength	λ_C	1270		1610	nm
Receiver Sensitivity (Average Power)	Sen.			-14.4	dBm	3
Input Saturation Power (overload)	Psat	0.5			dBm
LOS Assert	LOSA	-30			dBm
LOS De-assert	LOSD			-17	dBm
LOS Hysteresis	LOSH	0.5			dB

Notes:

1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

2. Launched power (avg.) is power coupled into a single mode fiber with master connector（Before of Life）.

3. Measured with Light source 1310nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
