MTP/MPO Patch Cord

  • ODVA(MPO&MTP) Outdoor Cable Assemblies Specification

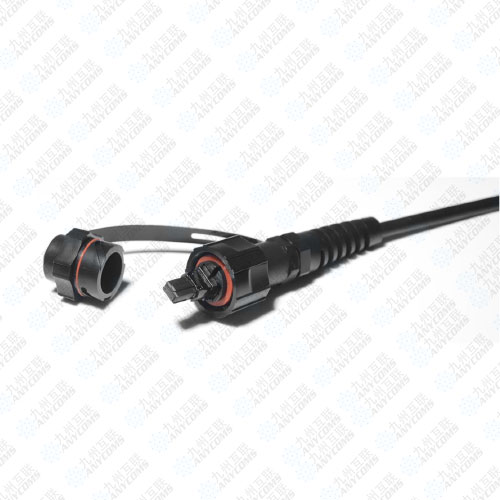

ODVA(MPO&MTP) Outdoor Cable Assemblies Specification

ODVA(MPO&MTP) Outdoor Cable Assemblies Specification

  • Product description: ODVA(MPO&MTP) Outdoor Cable Assemblies Specification
  • INQUIRY   EMAIL

Features

l   Cost effective solution for in house termination.

l   Low insertion loss and added loss.

l   Height of attenuation.

l   IP67 water, dust proof and corrosion resistant

l   The material in the jumpel cable are all-weather and UV-resistant.

l   Mechanical performance: IEC 61754-7 standard.

l   RoHS and REACH materials compliant

Applications

l   Multi-purpose Outdoor.

l   For connection between distribution box and RRH.

l   Deployment in Remote Radio Head cell tower applications.

MTP&MPOOptical Characteristics

Item

Parameter

Reference

Single mode

Multi mode

Standard

Elite

Standard

Elite

Insertion loss

Typical0.30dB

Max0.75dB

Typical0.15dB

Max0.35dB

Typical0.50dB

Max0.25dB

Typical0.10dB

Max0.35dB

IEC 61300-3-34

Return loss

50dB(UPC)

60dB(APC)

55dB(UPC)

65dB(APC)

30dB(UPC)

30dB(UPC)

IEC 61300-3-6

LC/SC/FC/ST Optical Characteristics

Item

Parameter

Reference

Single mode

Multi mode

Insertion loss

Typical0.15dB

Max0.30dB

Typical0.15dB

Max0.30dB

IEC 61300-3-34

Return loss

50dB(UPC)

60dB(APC)

30dB(UPC)

IEC 61300-3-6

Mechanical Characteristics

Test

Conditions

Reference

Endurance

500 matings

IEC 61300-2-2

Vibration

Frequency: 10 to 55Hz, Amplitude: 0.75mm

IEC 61300-2-1

Cable retention

400N (main cable); 50N (connector part)

IEC 61300-2-4

Strength of coupling mechanism

80N for 2 to 3mm cable

IEC 61300-2-6

Cable torsion

15N for 2 to 3mm cable

IEC 61300-2-5

Fall

10 drops, 1m drop height

IEC 61300-2-12

Static lateral load

1N for 1h (main cable); 0.2N for 5min (ranch part)

IEC 61300-2-42

Cold

-25°C, 96h duration

IEC 61300-2-17

Dry heat

+70°C, 96h duration

IEC 61300-2-18

Change of temperature

-25°C to +70°C, 12 cycles

IEC 61300-2-22

Humidity

+40°C at 93%, 96h duration

IEC 61300-2-19
