MTP/MPO Patch Cord

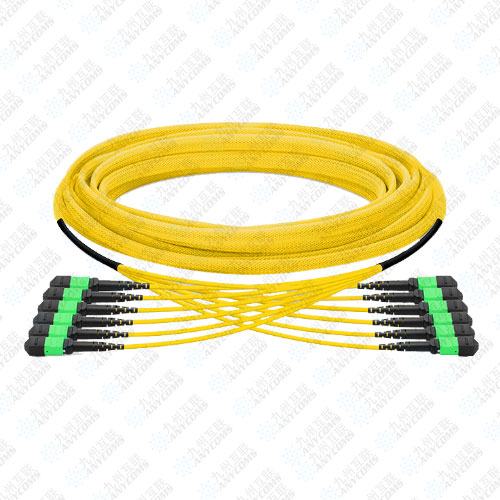

  • MPO-MTP Trunk Cable Specification 72core
MPO-MTP Trunk Cable Specification 72core

MPO-MTP Trunk Cable Specification 72core

  • Product description: Anycoms MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallatio
  • INQUIRY   EMAIL

Features

l 100% pre-terminated and tested in factory to ensure transfer performance.

l Rapid configuration and networking, reduce installation time.

l Supports 40G and 100G network applications.

l Cable Jacket material: LSZH, OFNR, OFNP available.

l Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

Applications

l Data communication network.

l Optical System Access network.

l Storage area networking fiber channel.

l High density architectures.

Connector Types

Type

Reference

Note

MPO

IEC 61754-7

Single mode

APC: Green connectors (Standard )

APC: Yellow connectors (Elite)

Multimode

PC: Aqua Connectors

MTP

IEC 61754-7

Single mode

APC: Green connectors (Standard )

APC: Yellow connectors (Elite)

Multimode

PC: Aqua Connectors

Optical Characteristics

Item

Parameter

Reference

Single mode

Multi mode

Standard

Elite

Standard

Elite

Insertion loss

Typical0.30dB

Max0.75dB

Typical0.15dB

Max0.35dB

Typical0.50dB

Max0.25dB

Typical0.10dB

Max0.35dB

IEC 61300-3-34

Return loss

50dB(PC)

60dB(APC)

55dB(PC)

65dB(APC)

30dB(PC)

30dB(PC)

IEC 61300-3-6

Mechanical Characteristics

Test

Conditions

Reference

Endurance

500 matings

IEC 61300-2-2

Vibration

Frequency: 10 to 55Hz, Amplitude: 0.75mm

IEC 61300-2-1

Cable retention

400N (main cable); 50N (connector part)

IEC 61300-2-4

Strength of coupling mechanism

80N for 2 to 3mm cable

IEC 61300-2-6

Cable torsion

15N for 2 to 3mm cable

IEC 61300-2-5

Fall

10 drops, 1m drop height

IEC 61300-2-12

Static lateral load

1N for 1h (main cable); 0.2N for 5min (ranch part)

IEC 61300-2-42

Cold

-25°C, 96h duration

IEC 61300-2-17

Dry heat

+70°C, 96h duration

IEC 61300-2-18

Change of temperature

-25°C to +70°C, 12 cycles

IEC 61300-2-22

Humidity

+40°C at 93%, 96h duration

IEC 61300-2-19
