DWDM Mux/Demux

  • 40Ch AAWG DWDM 100GHz C Band Mux Ch21-60, duplex traffic 2 fibers
40Ch AAWG DWDM 100GHz C Band Mux Ch21-60, duplex traffic 2 fibers

40Ch AAWG DWDM 100GHz C Band Mux Ch21-60, duplex traffic 2 fibers

  • Channel Spacing: 100GHz
  • Number of Channels: 40 Channel
  • In/Out Connector: LC
  • Multi-Number of Channels: C21-C61
  • Product description: Anycoms 40Ch AAWG DWDM 100GHz C Band Mux is designed to multiplex 40Ch DWDM 100GHz C Band for Ch21-60 duplex traffic into two fibers. Together with our DWDM Transceiver, the bandwidth of the fiber can
  • INQUIRY   EMAIL

ACS-OMD40-C2160-LU

40Ch AAWG DWDM 100GHz C Band Mux Ch21-60, duplex traffic 2 fibers

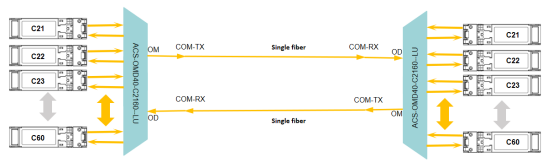

Anycoms 40Ch AAWG DWDM 100GHz C Band Mux is designed to multiplex 40Ch DWDM 100GHz C Band for Ch21-60 duplex traffic into two fibers. Together with our DWDM Transceiver, the bandwidth of the fiber can be utilized in a cost effective way.



Features

DWDM ITUT G.694.1 C Band 100GHz

Athermal AWG

Ch21-60

Protocol transparent, support 1G, 10G, 100G etc

Custom designed with optional features

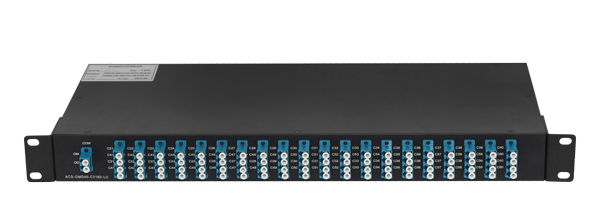

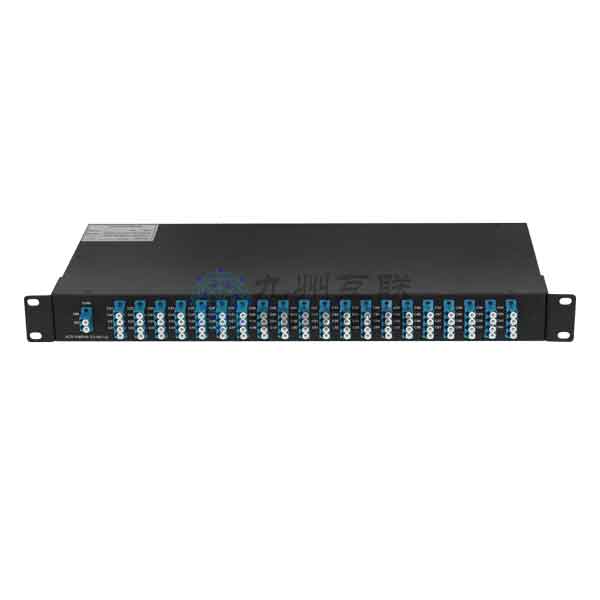

Package in 19" 1U Rackmount unit with 82x LC ports

Specifications

Parameter

Specification

Min

Typ

Max

Number of Channels

40/48

Number Channel SpacingGHz

100

Center Wavelengthnm

C-Band

Wavelength Stabilitynm

±0.005

-1 dB Channel Bandwidthnm

0.24

-3 dB Channel Bandwidthnm

0.43

Optical Insertion Loss at ITU griddB

4.5

6.5

IsolationdB

Adjacent

25

Non-Adjacent

30

Insertion Loss UniformitydB

1.0

DirectivitydB

45

Insertion Loss RippledB

0.5

Optical Return lossdB

40

PDL/Polarization Dependent Loss in Clear Channel BanddB

0.3

0.5

Polarization Mode Dispersionps

0.5

Maximum Optical PowermW

300

MUX/DEMUX input/ output Monitoring range(dB/℃)

-35

+23

Operating Temperature(℃)

-5~65Industrial grade:-40~85

Storage Temperature(℃)

5

95

Storage Humidity(%RH)

5

95

Package Size(1U Rackmount)(mm)

19" 1U Rackmount(L440×W200×H44)



P/N

Description

ACS-OMD40-C2160-LU

40Ch AAWG DWDM 100GHz C Band Mux Ch21-60, duplex traffic 2 fibers, 19" 1U Rackmount package
