  • 10Gb/s XFP DWDM Tunable 80KM Optical Transceiver Module
10Gb/s XFP DWDM Tunable 80KM Optical Transceiver Module

10Gb/s XFP DWDM Tunable 80KM Optical Transceiver Module

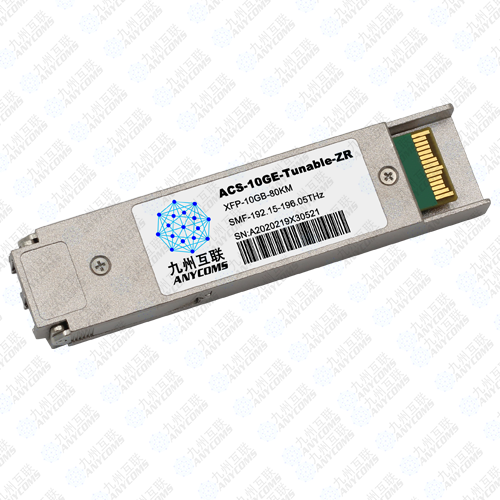

  • Product description: ACS-10GE-Tunable-ZR transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit
  • INQUIRY   EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l Monolithically integrated full C-band tunable transmitter and APD receiver

l 50 GHz ITU channel spacing with integrated wavelength locker

l Up to 80km on 9/125µm SMF

l Support Digital Diagnostic Monitoring interface

l Hot-pluggable XFP footprint

l No Reference Clock required

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Supports Line-side and XFI loopback

l Standard bail release mechanism

l Single +3.3V power supply

l Power dissipation <3.5W

l Case operating temperature

Commercial: 0 ~ +70oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typ.

Max

Unit

Notes

Transmitter

Optical Wavelength

λc

λc -0.05

λc +0.05

nm

1

Center Wavelength Spacing

50

GHz

Optical Spectral Width

∆λ

1

nm

Side Mode Suppression Ratio

SMSR

35

dB

Average Optical Power

PAVG

-1

4

dBm

2

Optical Extinction Ratio

ER

9

dB

Transmitter and Dispersion Penalty

TDP

3

dB

Transmitter off Output power

Poff

-30

dBm

Frequency stability (BOL)

-1.5

1.5

GHz

Frequency stability (EOL)

-2.5

2.5

GHz

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typ.

Max

Unit

Notes

Receiver

Center Wavelength

λC

1270

1610

nm

Receiver Sensitivity( Average power)

Sen.

-24

dBm

3

Input Saturation Power (overload)

Psat

-7

dBm

LOS Assert

LOSA

-37

dB

LOS De-assert

LOSD

-27

dBm

LOS Hysteresis

LOSH

0.5

dBm

Notes:

1.  λc refer to wavelength selection, and corresponds to approximately 0.4 nm

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.

Wavelength Selection: C-band λc Wavelength Guide Pin Descriptions

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C06

1568.36

191.15

C55

1548.51

193.60

C07

1567.95

191.20

C56

1548.11

193.65

C08

1567.54

191.25

C57

1547.72

193.70

C09

1567.13

191.30

C58

1547.32

193.75

C10

1566.72

191.35

C59

1546.92

193.80

C11

1566.31

191.40

C60

1546.52

193.85

C12

1565.90

191.45

C61

1546.12

193.90

C13

1565.50

191.50

C62

1545.72

193.95

C14

1565.09

191.55

C63

1545.32

194.00

C15

1564.68

191.60

C64

1544.92

194.05

C16

1564.27

191.65

C65

1544.53

194.10

C17

1563.86

191.70

C66

1544.13

194.15

C18

1563.45

191.75

C67

1543.73

194.20

C19

1563.05

191.80

C68

1543.33

194.25

C20

1562.64

191.85

C69

1542.94

194.30

C21

1562.23

191.90

C70

1542.54

194.35

C22

1561.83

191.95

C71

1542.14

194.40

C23

1561.42

192.00

C72

1541.75

194.45

C24

1561.01

192.05

C73

1541.35

194.50

C25

1560.61

192.10

C74

1540.95

194.55

C26

1560.20

192.15

C75

1540.56

194.60

C27

1559.79

192.20

C76

1540.16

194.65

C28

1559.39

192.25

C77

1539.77

194.70

C29

1558.98

192.30

C78

1539.37

194.75

C30

1558.58

192.35

C79

1538.98

194.80

C31

1558.17

192.40

C80

1538.58

194.85

C32

1557.77

192.45

C81

1538.19

194.90

C33

1557.36

192.50

C82

1537.79

194.95

C34

1556.96

192.55

C83

1537.40

195.00

C35

1556.55

192.60

C84

1537.00

195.05

C36

1556.15

192.65

C85

1536.61

195.10

C37

1555.75

192.70

C86

1536.22

195.15

C38

1555.34

192.75

C87

1535.82

195.20

C39

1554.94

192.80

C88

1535.43

195.25

C40

1554.54

192.85

C89

1535.04

195.30

C41

1554.13

192.90

C90

1534.64

195.35

C42

1553.73

192.95

C91

1534.25

195.40

C43

1553.33

193.00

C92

1533.86

195.45

C44

1552.93

193.05

C93

1533.47

195.50

C45

1552.52

193.10

C94

1533.07

195.55

C46

1552.12

193.15

C95

1532.68

195.60

C47

1551.72

193.20

C96

1532.29

195.65

C48

1551.32

193.25

C97

1531.90

195.70

C49

1550.92

193.30

C98

1531.51

195.75

C50

1550.52

193.35

C99

1531.12

195.80

C51

1550.12

193.40

CA0

1530.72

195.85

C52

1549.72

193.45

CA1

1530.33

195.90

C53

1549.32

193.50

CA2

1529.55

195.95

C54

1548.91

193.55

CA3

1529.55

196.00

Non-ITU

Peak wavelength between 1528.77nm-1563.86

CA4

1529.16

196.05

Notes:

1. When a tunable module is plugged in for the first time, it will go to a default channel, or Tx_DIS asserted it will go to a standby condition. HTXF-DT96-80C default channel is 1568.36nm, compatible with channel range from 1 to 99

2. When the module is power cycled it will automatically go to the last channel selected, or  Tx_DIS asserted it will go to a standby condition.  If Tx_DIS asserted, the last channel selected will be cleared, and a valid new channel command will be required to set a channel.

3. If the Tx  disabled and then re-enabled, the module returns to the last channel selected.
Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (oC)

ACS-10GE-Tunable-ZR

10.3125

Refer to wavelength selection

80km SMF

0~70 commercial
