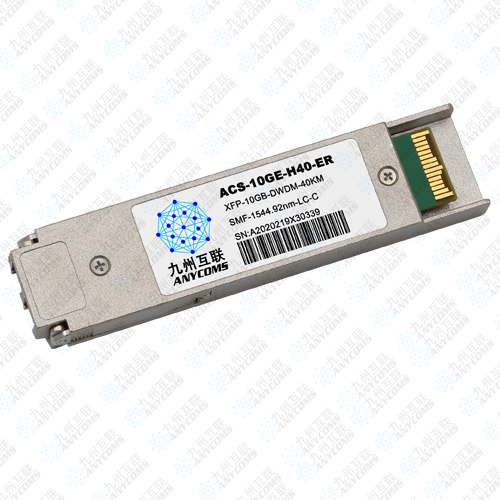

10Gb/s XFP DWDM 40KM Optical Transceiver Module(50GHZ)

10Gb/s XFP DWDM 40KM Optical Transceiver Module(50GHZ)

  • Product description: ACS-10GE-DWDM-Hxx-ER transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of DWDM EML Laser, PIN and Preamplifier in a high-integrated op
  • INQUIRY   EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l DWDM EML transmitter and PIN receiver

l 50 GHz ITU channel spacing with integrated wavelength locker

l Up to 40km on 9/125µm SMF

l Hot-pluggable XFP footprint

l Supports Lineside and XFI loopback

l Built-in digital diagnostic functions

l Full Duplex LC connector

l RoHS compliant and lead-free

l Single +3.3V power supply

l No Reference Clock required

l Power dissipation <3.5W

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Optical Wavelength

λc

λc -0.05

λc +0.05

nm

1

Center Wavelength Spacing

50

GHz

Optical Spectral Width

∆λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

-1

4

dBm

2

Optical Extinction Ratio

ER

8.2

dB

Transmitter and Dispersion Penalty

TDP

2

dB

Transmitter OFF Output Power

POff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-16.5

dBm

3

Input Saturation Power (overload)

Psat

0.5

dBm

LOS Assert

LOSA

-32

dB

LOS De-assert

LOSD

-18

dBm

LOS Hysteresis

LOSH

0.5

dBm

Notes:

1.  λc refer to wavelength selection, and corresponds to approximately 0.4 nm

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=8.2dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength Selection: C-band λc Wavelength Guide Pin

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C17

1563.86

191.70

C39

1546.12

193.90

C175

1563.45

191.75

C395

1545.72

193.95

C18

1563.05

191.80

C40

1545.32

194.00

C185

1562.64

191.85

C405

1544.92

194.05

C19

1562.23

191.90

C41

1544.53

194.10

C195

1561.83

191.95

C415

1544.13

194.15

C20

1561.42

192.00

C42

1543.73

194.20

C205

1561.01

192.05

C425

1543.33

194.25

C21

1560.61

192.10

C43

1542.94

194.30

C215

1560.20

192.15

C435

1542.54

194.35

C22

1559.79

192.20

C44

1542.14

194.40

C225

1559.39

192.25

C445

1541.75

194.45

C23

1558.98

192.30

C45

1541.35

194.50

C235

1558.58

192.35

C455

1540.95

194.55

C24

1558.17

192.40

C46

1540.56

194.60

C245

1557.77

192.45

C465

1540.16

194.65


Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C25

1557.36

192.50

C47

1539.77

194.70

C255

1556.96

192.55

C475

1539.37

194.75

C26

1556.55

192.60

C48

1538.98

194.80

C265

1556.15

192.65

C485

1538.58

194.85

C27

1555.75

192.70

C49

1538.19

194.90

C275

1555.34

192.75

C495

1537.79

194.95

C28

1554.94

192.80

C50

1537.40

195.00

C285

1554.54

192.85

C505

1537.00

195.05

C29

1554.13

192.90

C51

1536.61

195.10

C295

1553.73

192.95

C515

1536.22

195.15

C30

1553.33

193.00

C52

1535.82

195.20

C305

1552.93

193.05

C525

1535.43

195.25

C31

1552.52

193.10

C53

1535.04

195.30

C315

1552.12

193.15

C535

1534.64

195.35


Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C32

1551.72

193.20

C54

1534.25

195.40

C325

1551.32

193.25

C545

1533.86

195.45

C33

1550.92

193.30

C55

1533.47

195.50

C335

1550.52

193.35

C555

1533.07

195.55

C34

1550.12

193.40

C56

1532.68

195.60

C345

1549.72

193.45

C565

1532.29

195.65

C35

1549.32

193.50

C57

1531.90

195.70

C355

1548.91

193.55

C575

1531.51

195.75

C36

1548.51

193.60

C58

1531.12

195.80

C365

1548.11

193.65

C585

1530.72

195.85

C37

1547.72

193.70

C59

1530.33

195.90

C375

1547.32

193.75

C595

1529.94

195.95

C38

1546.92

193.80

C60

1529.56

196.00

C385

1546.52

193.85

C605

1529.16

196.05

Non-ITU

Peak wavelength between 1528.77nm-1563.86

C61

1528.77

196.10

Ordering Information

Part Number

Data Rate

(Gb/s)

Wavelength

(nm)

Transmission Distance

(km)

Temperature (oC) (Operating Case)

ACS-10GE-DWDM-Hxx-ER

10.3125

Refer to wavelength selection

40km SMF

0~70 commercial

ACS-10GE-DWDM-Hxx-ERI

10.3125

40km SMF

-40~85 Industrial
