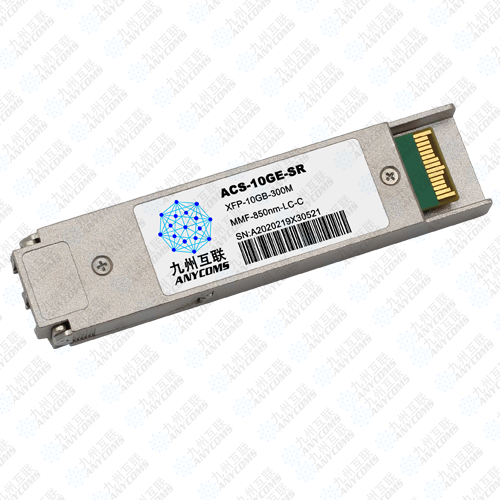

10Gb/s XFP 850nm 300M Optical Transceiver Module

Product description: ACS-10GE-SR transceiver is designed for use in 10-Gigabit Ethernet links up to 300m over Multi-mode fiber. The module consists of 850nm VCSEL Laser, PIN and Preamplifier in a high-integrated optical s
INQUIRY EMAIL

Features

l Supports 9.95Gb/s to 11.3Gb/s bit rates

l VCSEL transmitter and PIN receiver

l Up to 300m on 50/125µm MMF

l Hot-pluggable XFP footprint

l XFI Loopback Mode

l Built-in digital diagnostic functions

l Full Duplex LC connector

l RoHS compliant and lead-free

l Single +3.3V power supply

l No Reference Clock required

l Power dissipation <2.0W

l Case operating temperature

Commercial: 0 ~ +70oC

Extended: -10 ~ +80oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max		Unit	Notes
Transmitter
Center Wavelength	λ_C	840	850		860	nm	1
Optical Spectral Width	∆λ				0.85	nm
Average Optical Power	P_AVG	-6			-1	dBm	2
Optical Extinction Ratio	ER	3.0				dB
Average Launch power of OFF transmitter	P_OFF				-30	dBm
Transmitter and Dispersion Penalty	TDP				3.9	dB
Encircled Flux	<4.5μm				30	%	2
Transmitter Eye Mask	Compliant with IEEE802.3ae

Parameter	Symbol	Min.	Typical	Max		Unit	Notes
Receiver
Center Wavelength	λ_C	840	850		860	nm
Receiver Sensitivity (Average Power)	Sen.				-10	dBm	3
Input Saturation Power (overload)	Psat	0.5				dBm
LOS Assert	LOSA	-30				dBm
LOS De-assert	LOSD				-12	dBm
LOS Hysteresis	LOSH	0.5				dB
