10G/16G Transceivers

  • 10Gb/s SFP+ DWDM 40KM with CDR Optical Transceiver Module(100GHZ)
10Gb/s SFP+ DWDM 40KM with CDR Optical Transceiver Module(100GHZ)

10Gb/s SFP+ DWDM 40KM with CDR Optical Transceiver Module(100GHZ)

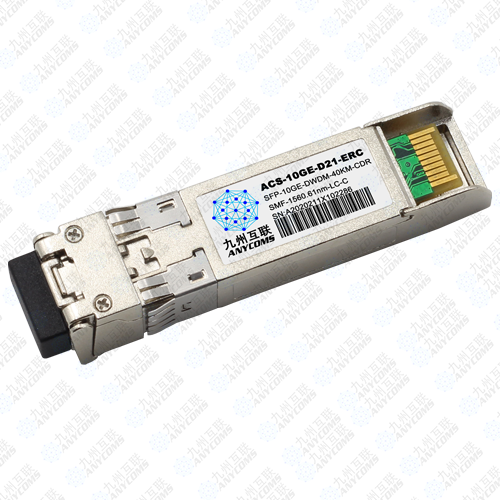

  • Product description: ACS-10GE-DWDM-Cxx-ER-C transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of DWDM EML Laser, PIN and Preamplifier in a high-integrated
  • INQUIRY   EMAIL

Features

l Up to 11.3Gb/s data links

l DWDM EML transmitter and PIN photo-detector

l 100 GHz ITU channel spacing with integrated wavelength locker

l Up to 40km on 9/125µm SMF

l with CDR supported 9.95 to 11.3Gb/s reference-free

l Duplex LC/UPC type pluggable optical interface

l Support Digital Diagnostic Monitoring interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Hot-pluggable SFP+ footprint

l Single +3.3V power supply

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70oC

Industrial: -40 ~ +85oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Optical Wavelength

λc

λc -0.1

λc +0.1

nm

1

Center Wavelength Spacing

100

GHz

Optical Spectral Width

∆λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

-1

+3

dBm

2

Optical Extinction Ratio

ER

6

dB

Transmitter and Dispersion Penalty

TDP

3

dB

Transmitter OFF Output Power

POff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-16

dBm

3

Input Saturation Power (overload)

Psat

0.5

dBm

LOS Assert

LOSA

-30

dB

LOS De-assert

LOSD

-19

dBm

LOS Hysteresis

LOSH

0.5

dBm

Notes:

1.  λc refer to wavelength selection, and corresponds to approximately 0.8 nm

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength Selection: C-band λc Wavelength Guide Pin

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C17

1563.86

191.70

C39

1546.12

193.90

C18

1563.05

191.80

C40

1545.32

194.00

C19

1562.23

191.90

C41

1544.53

194.10

C20

1561.42

192.00

C42

1543.73

194.20

C21

1560.61

192.10

C43

1542.94

194.30

C22

1559.79

192.20

C44

1542.14

194.40

C23

1558.98

192.30

C45

1541.35

194.50

C24

1558.17

192.40

C46

1540.56

194.60

C25

1557.36

192.50

C47

1539.77

194.70

C26

1556.55

192.60

C48

1538.98

194.80

C27

1555.75

192.70

C49

1538.19

194.90

C28

1554.94

192.80

C50

1537.40

195.00

C29

1554.13

192.90

C51

1536.61

195.10

C30

1553.33

193.00

C52

1535.82

195.20

C31

1552.52

193.10

C53

1535.04

195.30

C32

1551.72

193.20

C54

1534.25

195.40

C33

1550.92

193.30

C55

1533.47

195.50

C34

1550.12

193.40

C56

1532.68

195.60

C35

1549.32

193.50

C57

1531.90

195.70

C36

1548.51

193.60

C58

1531.12

195.80

C37

1547.72

193.70

C59

1530.33

195.90

C38

1546.92

193.80

C60

1529.55

196.00

Non-ITU

Peak wavelength between 1528.77nm-1563.86

C61

1528.77

196.10

Ordering Information

Part Number

Data Rate

(Gb/s)

Wavelength

(nm)

Transmission Distance

(km)

Temperature (oC) (Operating Case)

ACS-10GE-DWDM-Cxx-ER-C

10.3125

Refer to wavelength selection

40km SMF

0~70 commercial

ACS-10GE-DWDM-Cxx-ER-C

10.3125

40km SMF

-40~85 Industrial
