  • 10Gb/s SFP+ CWDM 80KM EML Optical Transceiver Module
10Gb/s SFP+ CWDM 80KM EML Optical Transceiver Module

10Gb/s SFP+ CWDM 80KM EML Optical Transceiver Module

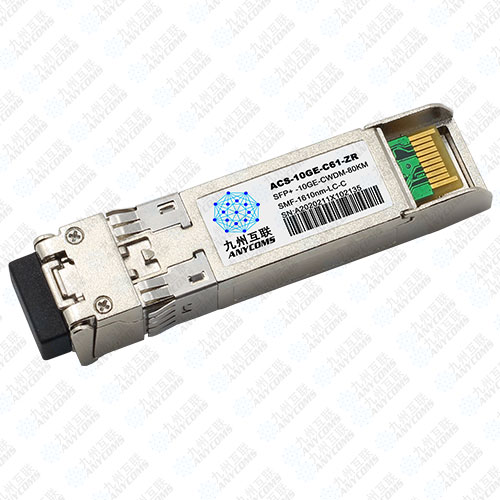

  • Product description: ACS-10GE-Cxxxx-ZR transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of CWDM EML Laser, APD and Preamplifier in a high-integrated optic
  • INQUIRY   EMAIL

Features

l Up to 11.3Gb/s data links

l CWDM EML transmitter and APD receiver

l Up to 80km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 1.5W

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70 oC

Industrial: -40 ~ +85 oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λ

λ -6.5

λ +6.5

nm

1

Optical Spectral Width

λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

-1

4

dBm

2

Optical Extinction Ratio

ER

6

dB

Transmitter and Dispersion Penalty

TDP

3

dB

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λ

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-23

dBm

3

Input Saturation Power (overload)

Psat

-6

dBm

Receiver Reflectance

Rrx

-27

LOS Assert

LOSA

-32

dBm

LOS De-assert

LOSD

-26

dBm

Notes:

1. λ refer to wavelength selection, 1470~1610nm please the “product selection.

2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

3. Measured with Light source 1470~1610nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Wavelength List:

Wavelength

Clasp Color Code

Wavelength

Clasp Color Code

1470 nm

Gray

1550 nm

Yellow

1490 nm

Purple

1570 nm

Orange

1510 nm

Blue

1590 nm

Red

1530 nm

Green

1610 nm

Brown

Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

ACS-10GE-Cxxxx-ZR

10.3125

Refer to wavelength selection

80KM SMF

0~70 commercial

ACS-10GE-Cxxxx-ZRI

10.3125

80KM SMF

-40~85 Industrial
