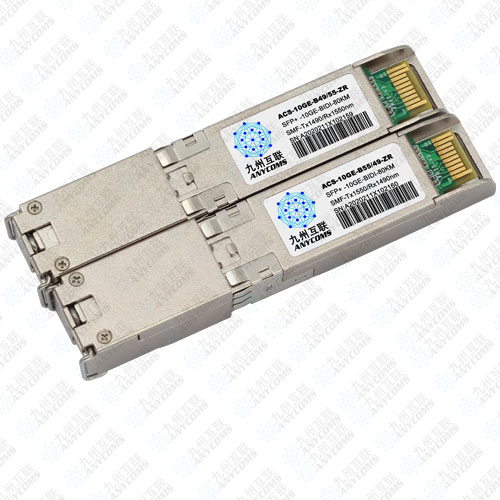

  • 10Gb/s SFP+ BIDI 80KM Optical Transceiver Module
10Gb/s SFP+ BIDI 80KM Optical Transceiver Module

10Gb/s SFP+ BIDI 80KM Optical Transceiver Module

  • Part Number: ACS-10GE-B4955-ZR/ACS-10GE-B5549-ZR
  • Max Data Rate: 10Gbps
  • Wavelength: 1490/1550nm
  • Max Cable Distance: 80KM
  • Product description: ACS-10GE-B4955-ZR/ACS-10GE-B5549-ZR transceiver is designed for use in 10-Gigabit Ethernet links up to 60km over single mode fiber .The module consists of CWDM DFB Laser, APD and Preamplifier in a hig
  • INQUIRY   EMAIL

Features

l Up to 11.1Gb/s data rate

l 1490nm DFB laser and APD receiver for ACS-10GE-B4955-ZR

l 1550nm DFB laser and APD receiver for ACS-10GE-B5549-ZR

l 2-wire interface with integrated Digital Diagnostic monitoring

l Up to 80km  transmission on SMF

l BIDI LC optical connector

l Single +3.3V power supply

l Metal enclosure, for lower EMI

l Maximum power consumption 1.5W

l RoHS-6 compliant and lead-free

l SFF-8472 MSA compliant &SFF-8431

l Operating case temperature

Commercial: 0 ~ 70oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

1480

1490

1500

nm

1540

1550

1560

nm

Optical Spectral Width

λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

0

5

dBm

Optical Extinction Ratio

ER

7.5

dB

Average Launched Power(Laser Off)

Poff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

1540

1550

1560

nm

1480

1490

1500

nm

Receiver Sensitivity (Average Power)

Sen.

-23

dBm

1

Input Saturation Power (overload)

Psat

-6

dBm

LOS Assert

LOSA

-38

dBm

LOS De-assert

LOSD

-24

dBm

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. Measured with Light source 1490nm @1550nm, ER=7.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (oC)

ACS-10GE-B4955-ZR

10.3125

Tx1490/Rx1550

80KM SMF

0~70 commercial

ACS-10GE-B5549-ZR

10.3125

Tx1550/Rx1490

80KM SMF

0~70 commercial
