  • 10Gb/s SFP+ BIDI 10KM Optical Transceiver Module
10Gb/s SFP+ BIDI 10KM Optical Transceiver Module

10Gb/s SFP+ BIDI 10KM Optical Transceiver Module

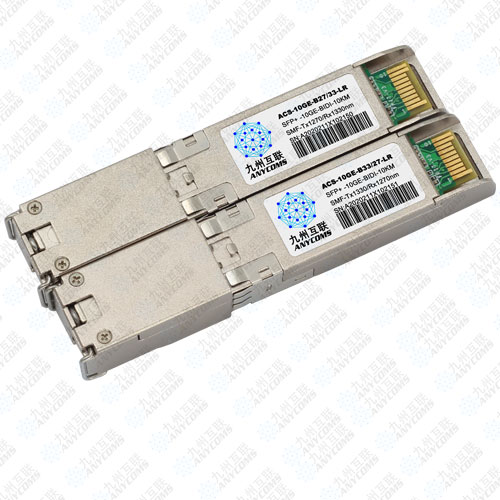

  • Product description: ACS-10GE-B2733-LR/ACS-10GE-B3327-LR transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a hig
  • INQUIRY   EMAIL

Features

l Up to 11.1Gb/s data rate

l 1270nm DFB laser and PIN receiver for ACS-10GE-B2733-LR

l 1330nm DFB laser and PIN receiver for ACS-10GE-B3327-LR

l 2-wire interface with integrated Digital Diagnostic monitoring

l Up to 10km  transmission on SMF

l BIDI LC optical connector

l Single +3.3V power supply

l Metal enclosure, for lower EMI

l Maximum power consumption 1.5W

l RoHS-6 compliant and lead-free

l SFF-8472 MSA compliant &SFF-8431

l Operating case temperature

Commercial: 0 ~ 70oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

1260

1270

1280

nm

1320

1330

1340

nm

Optical Spectral Width

λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

-6

-1

dBm

Optical Extinction Ratio

ER

3.5

dB

Average Launched Power(Laser Off)

Poff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

1320

1330

1340

nm

1260

1270

1280

nm

Receiver Sensitivity (Average Power)

Sen.

-14.4

dBm

1

Input Saturation Power (overload)

Psat

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-17

dBm

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. Measured with Light source 1270nm @1330nm, ER=3.5dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (oC)

ACS-10GE-B2733-LR

10.3125

Tx1270/Rx1330

10KM SMF

0~70 commercial

ACS-10GE-B3327-LR

10.3125

Tx1330/Rx1270

10KM SMF

0~70 commercial
