  • 10Gb/s SFP+ 1550nm 80KM with CDR Optical Transceiver Module
10Gb/s SFP+ 1550nm 80KM with CDR Optical Transceiver Module

10Gb/s SFP+ 1550nm 80KM with CDR Optical Transceiver Module

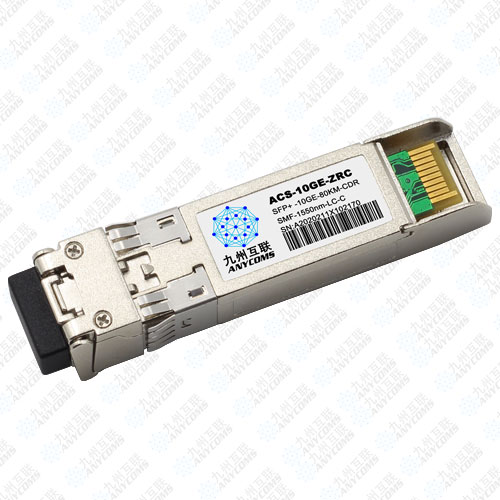

  • Product description: ACS-10GE-ZR-C transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of 1550 EML Laser, APD and Preamplifier in a high-integrated optical s
  • INQUIRY   EMAIL

Features

l Up to 11.3Gb/s data links

l 1550nm EML transmitter and APD receiver

l with CDR supported 9.95 to 11.3Gb/s reference-free

l Up to 80km on 9/125µm SMF

l Hot-pluggable SFP+ footprint

l Duplex LC/UPC type pluggable optical interface

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Maximum power consumption 1.8W

l Compliant with SFF+MSA and SFF8472

l Case operating temperature

Commercial: 0 ~ +70 oC

Industrial: -40 ~ +85 oC

Optical Characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

1530

1550

1565

nm

1

Optical Spectral Width

λ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

-1

4

dBm

2

Optical Extinction Ratio

ER

6

dB

Transmitter and Dispersion Penalty

TDP

3.0

dB

Transmitter OFF Output Power

Poff

-30

dBm

Transmitter Eye Mask

Compliant with IEEE802.3ae


Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Receiver

Center Wavelength

λC

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-24

dBm

3

Input Saturation Power (overload)

Psat

-6

dBm

Receiver Reflectance

Rrx

-27

LOS Assert

LOSA

-35

dBm

LOS De-assert

LOSD

-26

dBm

LOS Hysteresis

LOSH

0.5

dB

Notes:

1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.

2. Launched power (avg.) is power coupled into a single mode fiber with master connector(Before of Life).

3. Measured with Light source 1550nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Ordering Information

Part Number

Data Rate (Gb/s)


Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

ACS-10GE-ZR-C

10.3125

1550

80km SMF

0~70 commercial

ACS-10GE-ZRI-C

10.3125

1550

80km SMF

-40~85 Industrial


Inquiry:
