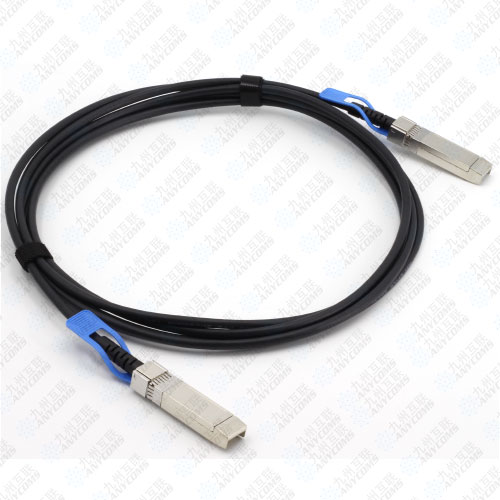

Features
l Up to 25.78125 Gbps data rate
l Up to 5 meter transmission
l Hot-pluggable SFP 20PIN footprint
l Improved Pluggable Form Factor(IPF)
l compliant for enhanced EMI/EMC performance
l Compatible to SFP28 MSA
l Compatible to SFF-8402 and SFF-8432
l Temperature Range: 0~ 70 °C
l RoHS Compatible
Benefits
l Cost-effective copper solution
l Lowest total system power solution
l Lowest total system EMI solution
l Optimized design for Signal Integrity
General Product Characteristics
|
SFP+ DAC Specifications |
|
|
Number of Lanes |
Tx & Rx |
|
Channel Data Rate |
10.3125 Gbps |
|
Operating Temperature |
0 to + 70°C |
|
Storage Temperature |
-40 to + 85°C |
|
Supply Voltage |
3.3 V nominal |
|
Electrical Interface |
20 pins edge connector |
|
Management Interface |
Serial, I2C |
|
Parameter |
Symbol |
Min. |
Typical. |
Max. |
Unit |
Note |
|
|
Differential Impedance |
RIN,P-P |
90 |
100 |
110 |
Ώ |
|
|
|
Insertion loss |
SDD21 |
8 |
|
22.48 |
dB |
At 12.8906 GHz |
|
|
Differential Return Loss |
SDD11 |
12.45 |
|
See 1 |
dB |
At 0.05 to 4.1 GHz |
|
|
SDD22 |
3.12 |
|
See 2 |
dB |
At 4.1 to 19 GHz |
||
|
|
|||||||
|
Common-mode to |
SCC11 |
|
- |
|
dB |
|
|
|
common-mode |
2 |
|
|
At 0.2 to 19 GHz |
|||
|
SCC22 |
|
|
|||||
|
output return loss |
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
Differential to common-mode |
SCD11 |
12 |
- |
See 3 |
dB |
At 0.01 to 12.89 GHz |
|
|
|
|
|
|
||||
|
return loss |
SCD22 |
10.58 |
|
See 4 |
At 12.89 to 19 GHz |
||
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
At 0.01 to 12.89 GHz |
|
|
Differential to common Mode |
SCD21-IL |
|
|
|
|
|
|
|
Conversion Loss |
|
|
See 5 |
dB |
At 12.89 to 15.7 GHz |
||
|
|
|
6.3 |
|
|
|
At 15.7 to 19 GHz |
|
|
Channel Operating Margin |
COM |
3 |
|
|
dB |
|
