Features
l Support 10GBASE-SR/10G Fiber Channel application
l Compliant to SFP+ Electrical MSA SFF-8431
l Compliant to SFP+ Mechanical MSA SFF-8432
l Multi rate of up to 11.3Gbps
l +3.3V single power supply
l Low power consumption
l Operating case temp Commercial: 0°C to +70 °C
l RoHS compliant
l Password protection for A0h and A2h

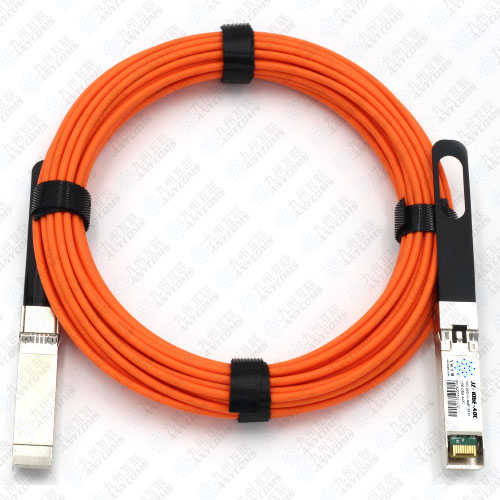

l 10G SFP+ AOC
l Minimum Bend Radius: 7.5mm
l Jacket: PVC,LSZH,OFNP
l Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel
l Standard Length: 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m
l Custom Length: up to 100m
Applications
l 10GBASE-SR at 10.31Gbps
l InfiniBand QDR, SDR, DDR
l Other optical links
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Data Rate |
DR |
9.953 |
10.3125 |
11.3 |
Gbps |
|
|
Center Wavelength |
λC |
820 |
850 |
880 |
nm |
1 |
|
Spectral Width(RMS) |
RMS |
|
|
0.45 |
nm |
|
|
Laser Off Power |
Poff |
|
|
-45 |
dBm |
|
|
Launch Optical Power |
P0 |
-6.0 |
|
|
dBm |
|
|
Optical Extinction Ratio |
ER |
3 |
|
|
dB |
|
|
Receiver |
||||||
|
Data Rate |
DR |
9.953 |
10.3125 |
11.3 |
Gbps |
|
|
Center Wavelength |
λC |
820 |
850 |
880 |
nm |
|
|
Receiver Sensitivity (Average Power) |
Sen. |
|
|
-9.9 |
dBm |
3 |
|
Overload Input Optical Power |
PIN |
2.4 |
|
|
dBm |
|
|
Bit Error Rate |
BER |
|
|
-E-12 |
dBm |
|
|
LOS Assert |
LOSA |
-26 |
|
|
dBm |
|
|
LOS De-assert |
LOSD |
|
|
-12 |
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
Note:
1.Coupled into 50/125 MMF.
2. Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=10E-12
